(Edited by Devon LaChance)
Coming soon to a Hobby Shop near you
New Products
Bowser HO "Executive Line" GMD SD 40-2
These locos are in the design stage.
We are asking for input from anyone that has knowledge of these models.
See much more info on our web site
www.bowser-trains.com
Canadian Model Railroaders. Bowser is designing this model Canadian. We are not making the EMD version and just making a few changes. This is designed from the ground up as GMD built.

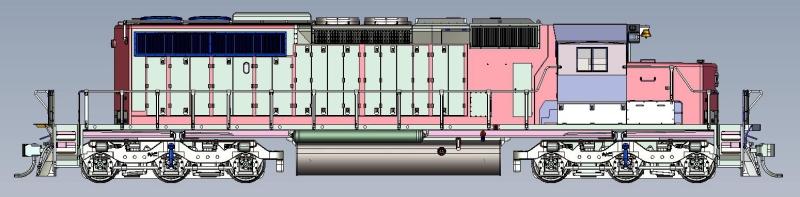

Here is the second set of engineering drawings for our all new GMD SD 40-2. I am asking for any input about these designs. If you spot something we have missed or have incorrect please contact me at bowser@bowser-trains.com. If you do have corrections please include proof. Just saying that you know is not enough. I need photos or documents.
The Road number is used to identify the group with the same body details. Please do not comment on paint schemes yet. We are only designing the actual body at this time. There are no ditch lights on any locos yet. They will be added with the next batch of changes. Thank you to Trains Canada ™ and to Fred Clark for a wonderful book "Volume One: Canadian Pacific SD40 & SD40-2s - Acquired New"
BCR 752 Version
- 102" nose
- Corrugated Radiators
- 8 Inch Deck
- Ditch lites on pilot and on top of deck
- Brake Wheel
- Standard Size Fuel Tank 19' 2"
- Number board lights - 3 lights
- Deck Step Well with Radius
- Blower housing
- Roof top Standard Fans
CP 5570 Version
- 81" nose
- Wire Radiator Grill
- 8 Inch Deck
- Ditch lites on pilot
- Brake Wheel
- Standard Size Fuel Tank 19' 2"
- Number board lights - 1 lights
- Deck Step Well Rounded
- Louvers under radiator grill
- Round Blower housing
- Roof top Standard Fans
CP 5718 Version
- 102" nose
- Wire Radiator Grill
- 8 Inch Deck
- Ditch lites on pilot
- Brake Wheel
- Standard Size Fuel Tank 19' 2"
- Number board lights - 3 lights
- Deck Step Well Rounded
- NO Louvers under radiator grill
- Blower housing
- Roof top Standard Fans
CP 5813 Version
- 102" nose
- Wire Radiator Grill
- 8 Inch Deck
- Ditch lites on pilot
- Brake Wheel
- Standard Size Fuel Tank 19' 2"
- Number board lights - 3 lights
- Deck Step Well Rounded
- Louvers under radiator grill
- Blower housing
- Roof top Standard Fans
CP 5839 Version
- 102" nose
- Corrugated Radiator Grill
- 8 Inch Deck
- Ditch lites on pilot
- Brake Wheel
- Standard Size Fuel Tank 19' 2"
- Number board lights - 3 lights
- Deck Step Well Rounded
- Blower housing
- Roof top Standard Fans
CP 5962 Version
- 102" nose
- Corrugated Radiator Grill
- 8 Inch Deck
- Ditch lites on pilot
- Brake Wheel
- Standard Size Fuel Tank 19' 2"
- Number board lights - 3 lights
- Deck Step Step Well Angled with notch
- Blower housing
- Roof top Q Fans
- Exhaust Silencer on top
- Anti climber on front end of deck
- After cooler Pipe on top rear
CP 6040 Version
- 102" nose
- Corrugated Radiator Grill
- 5 Inch Deck with ANTI climber on front only
- Ditch lites on pilot
- Brake Wheel
- Standard Size Fuel Tank 19' 2"
- Number board lights - 3 lights
- Deck Step Well Angled with notch
- Blower housing ANGLED
- Roof top Q Fans
- Winter hatch on forward fan
- Exhaust Silencer on top
- After cooler Pipe on top rear

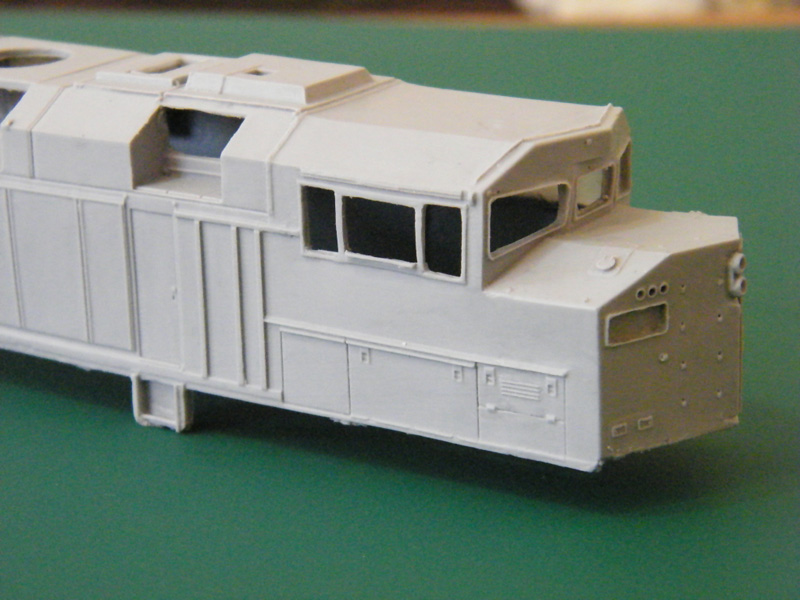

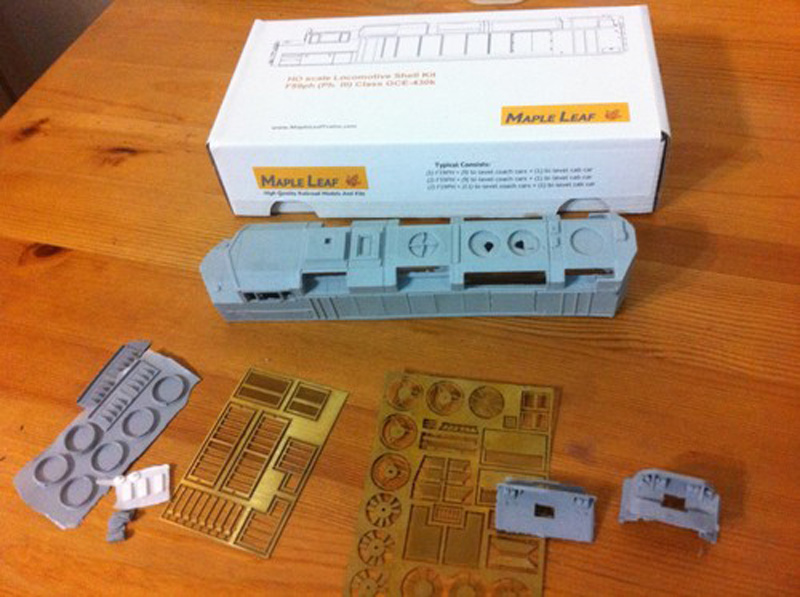

Maple Leaf Trains has released their first HO locomotive model shell. The GMD-built F59PH (phase III) version, now available for the first time in HO scale. The first run is decorated in GO transit white and green. CRO will be reviewing the model over the next two months.
http://www.mapleleaftrains.com/
Building a CN SD60F "Zebra Barn" model
(By Daniel Dell’Unto)

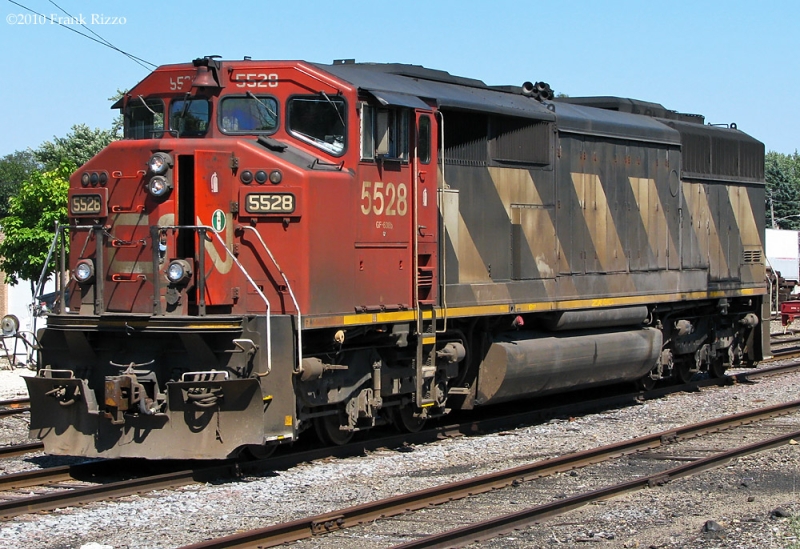

Here's just a quickie look at a model or two I'm working on, for the modelers out there. These are HO-scale resin shell kits made by Kaslo Shops, designed to fit on a commercial chassis (I use that term loosely, they often require quite a few modifications to fit). I recently ordered a pair (an SD40-2F for CP and SD60F for CN) from Grant Eastman at Southern Alberta Rail, who commissioned the SD40-2F kit. They can be sometimes found on eBay for sale, some available by SAR, Custom Trains Canada, or possibly direct from Kaslo (although their site seems to be under construction). (Prototype photo by Frank Rizzo)

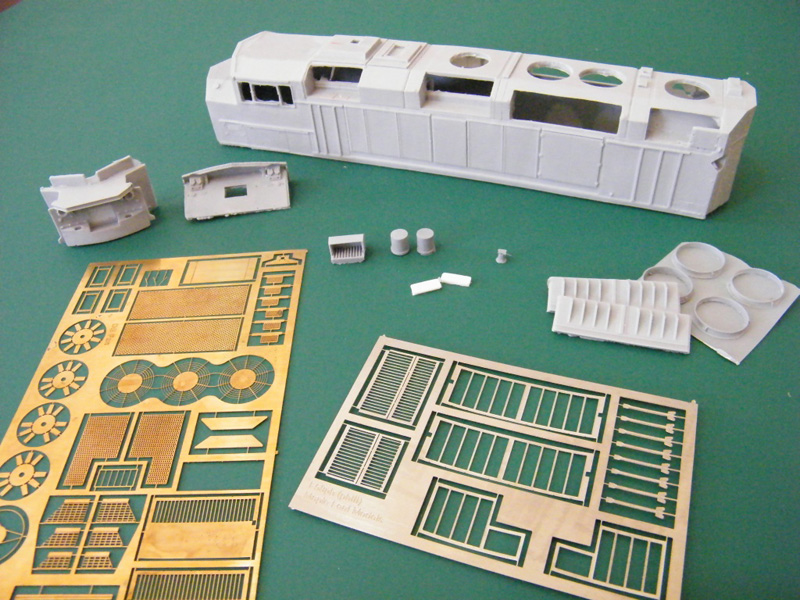

I'm building the SD60F right now for someone enthusiastic about CN Canadian cowl units, and have the SD40-2F in reserve for someone else who wants a CP 9020. I've also got a Kaslo F59PH as a rainy day project (also pictured, requires more chassis work and some body corrections). These aren't for beginners!
Photos show:

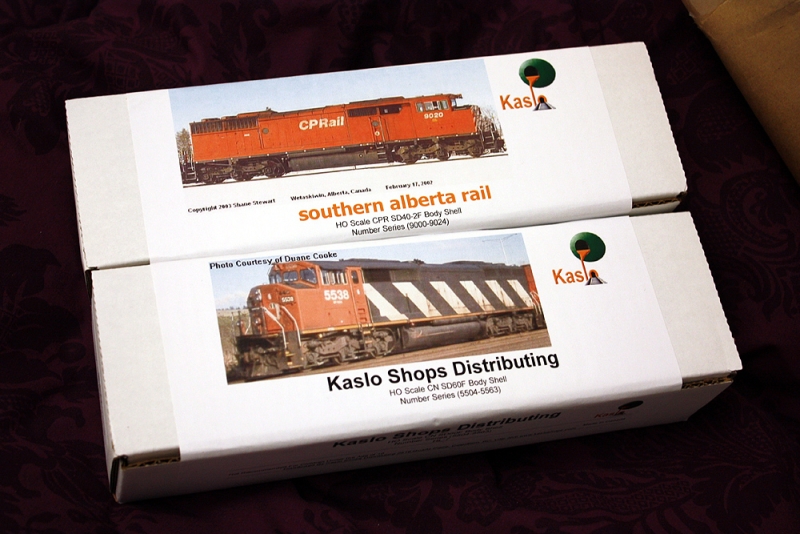

CN SD60F_1 - The kits fresh from the mail

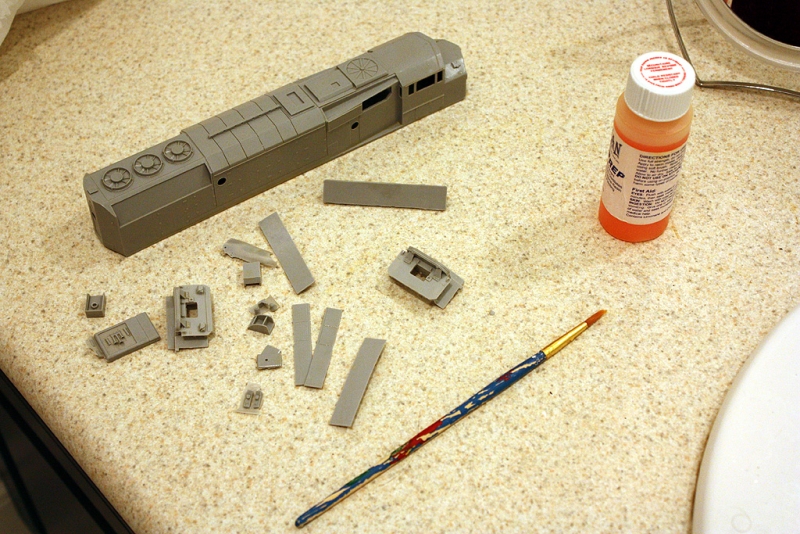

SD60F_2 - Cleaning the resin parts with a special resin mold release cleaner from Sylivan Scale Models. Etched stainless steel parts and laser cut windows also included, but not shown here.

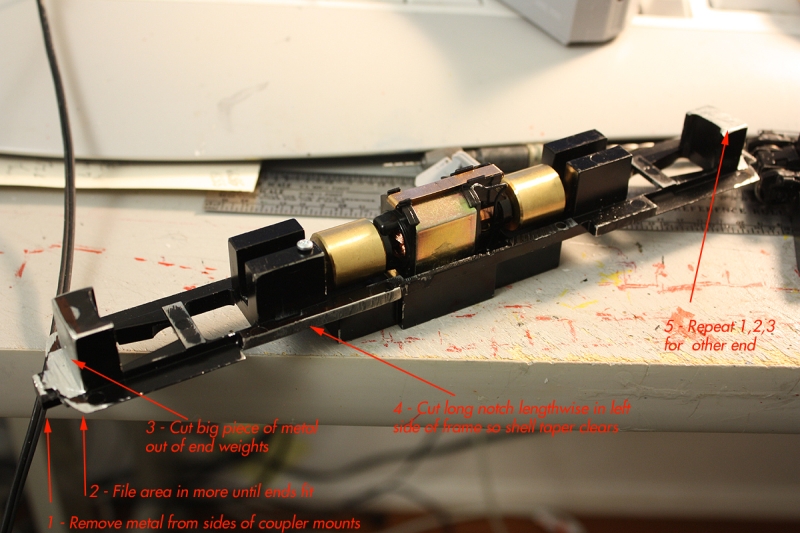

SD60F_3 - The basic chassis modifications to get it to fit. I also had to cut out the coupler mounts on the resin Kaslo pilots, as the couplers are designed to be body mounted, but I wanted them to mount to the frame.

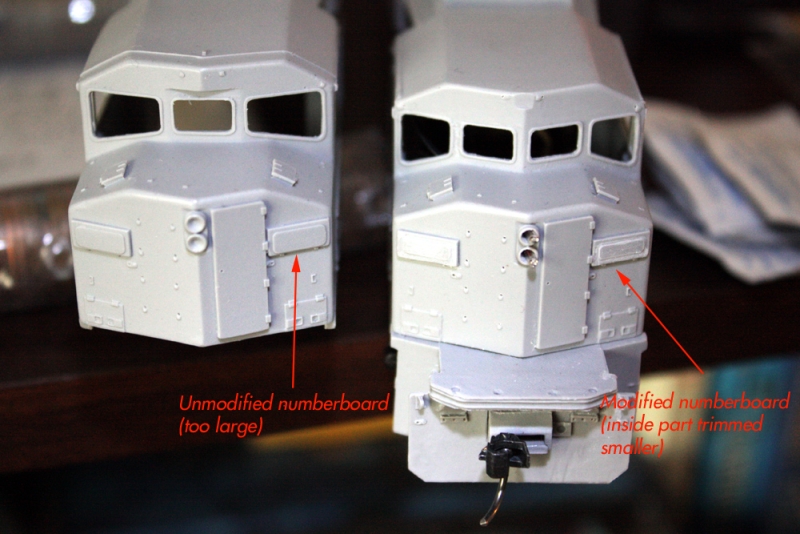

SD60F_4 - Trimmed the inside numberboard areas a bit smaller, according to photos.
SD60F_5 - Built up the Q-fans. Very delicate etched stainless steel parts, I had to make a modification or two.

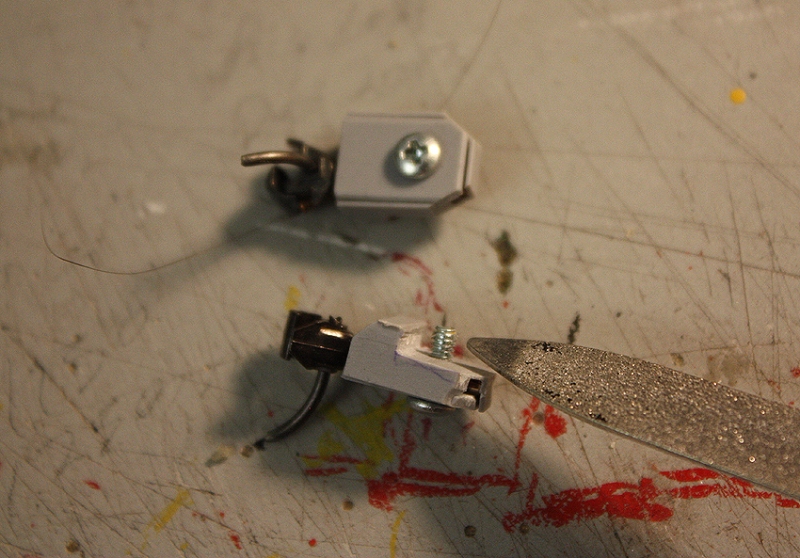

SD60F_6 - Notching the coupler boxes to fit the chassis and clear the truck swing

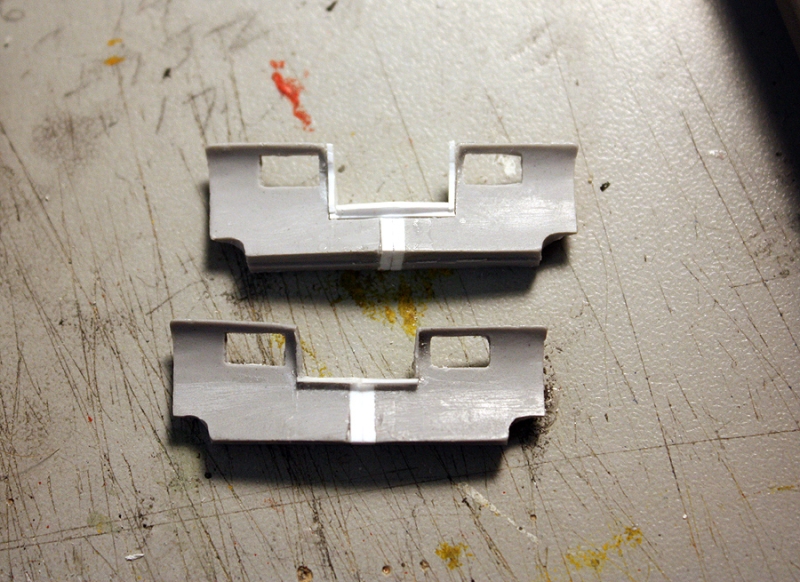

SD60F_7 - Plow modifications. Widened the Kaslo plows as they were too narrow, and added some "trim". Top one is for the SD40-2F, bottom SD60F

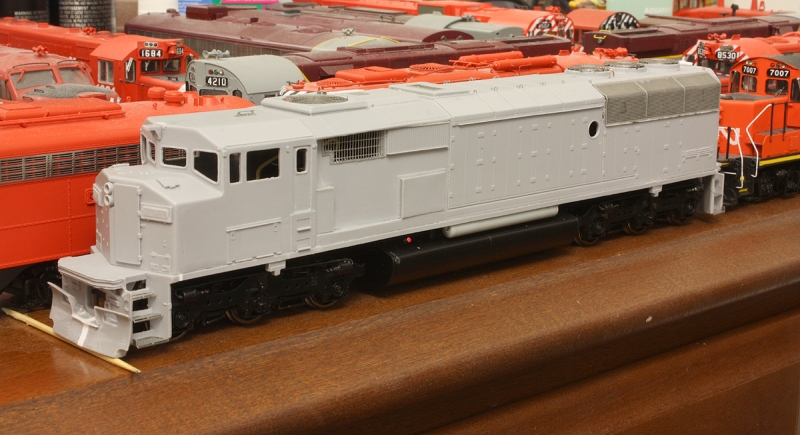

SD60F_8 - The SD60F partially assembled and mounted on the chassis. Still quite a bit of work to do before painting. This one will be either 5531 or 5539 as the Kaslo kit comes with the ribbed engine roof style found on the SD50F by error, but some SD60F's had it swapped on later on. (Kaslo offers both the SD50F and SD60F as separate kits).
More to come at a later date...
As time warrants, Dan will work on this GO Transit F59PH shell, Phase 1 unit likely to be GO 520! Cheers, Daniel Dell’Unto.

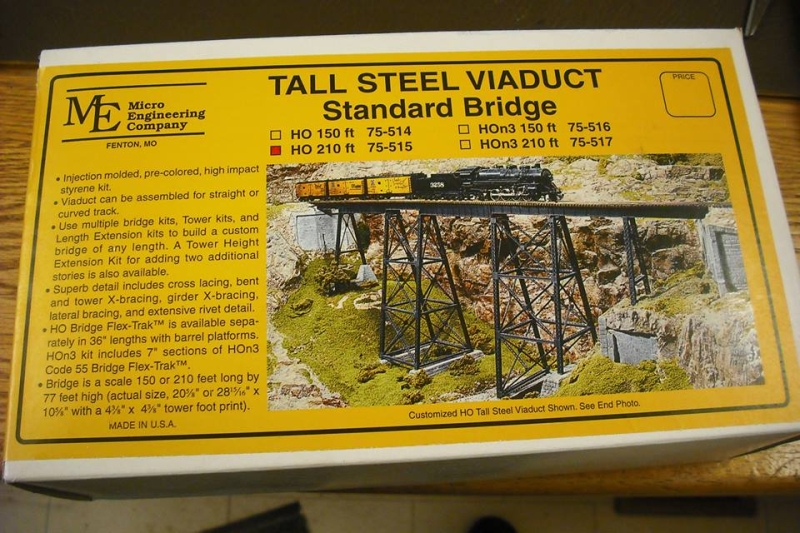

HO Scale Micro Nnigineering bridges are now in stock

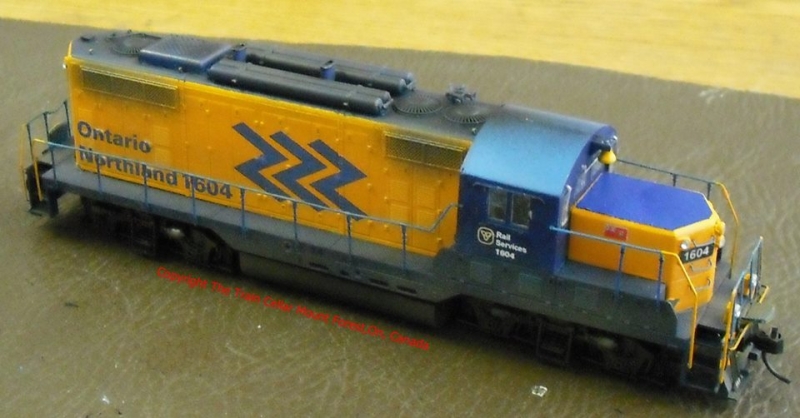

HO chopnose ONR GP-9. done for a customer...

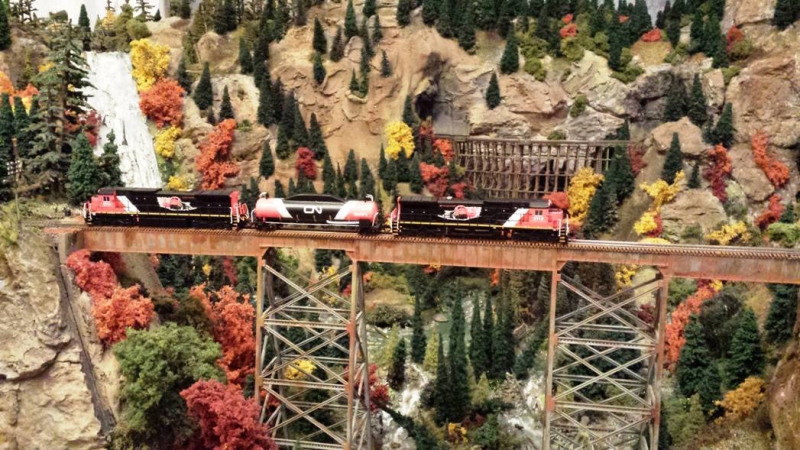

Thomas Volkel models Canadian National and BC RAIL (PGE) in N Scale. He photographed his CN LNG Fuel Tender with double ended CN C40-8’s sporting the 15 year anniversary livery, crossing the steel trestle bridge on his home layout.
Modeling from the Prototype:

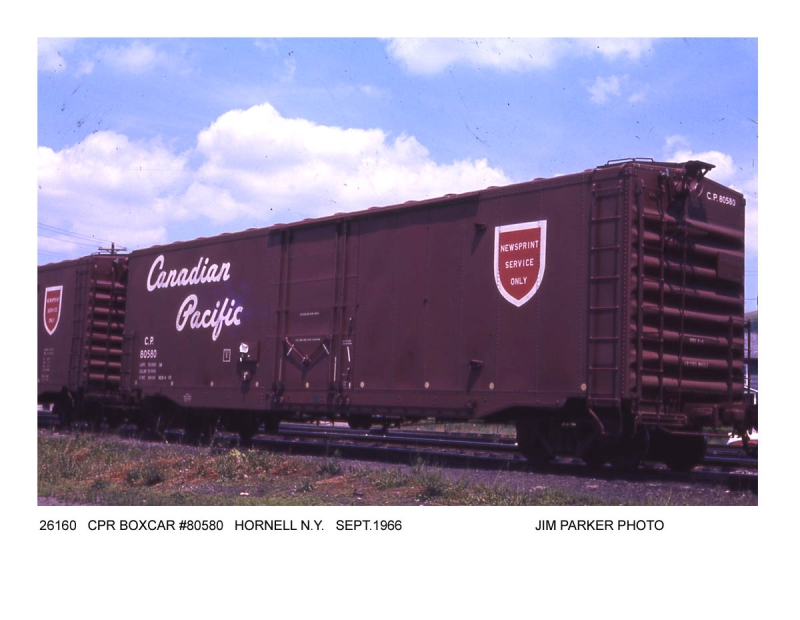

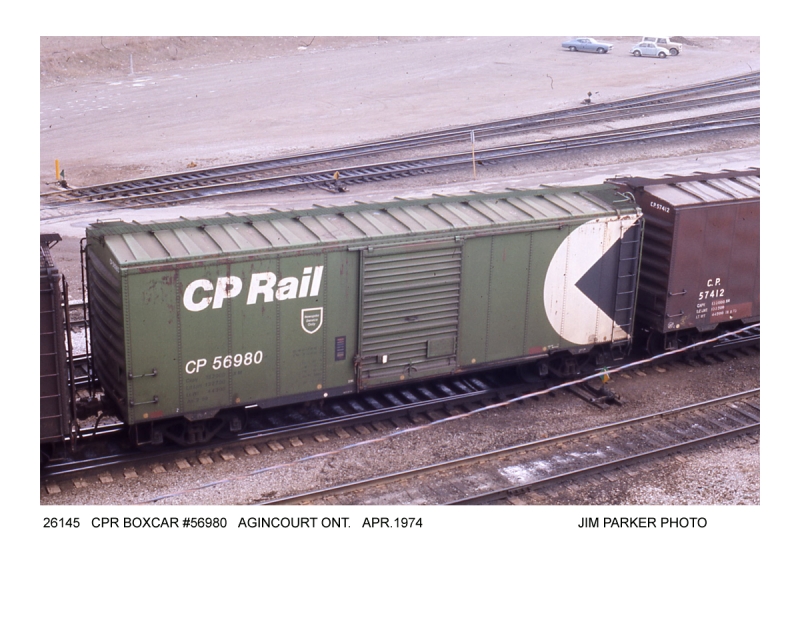

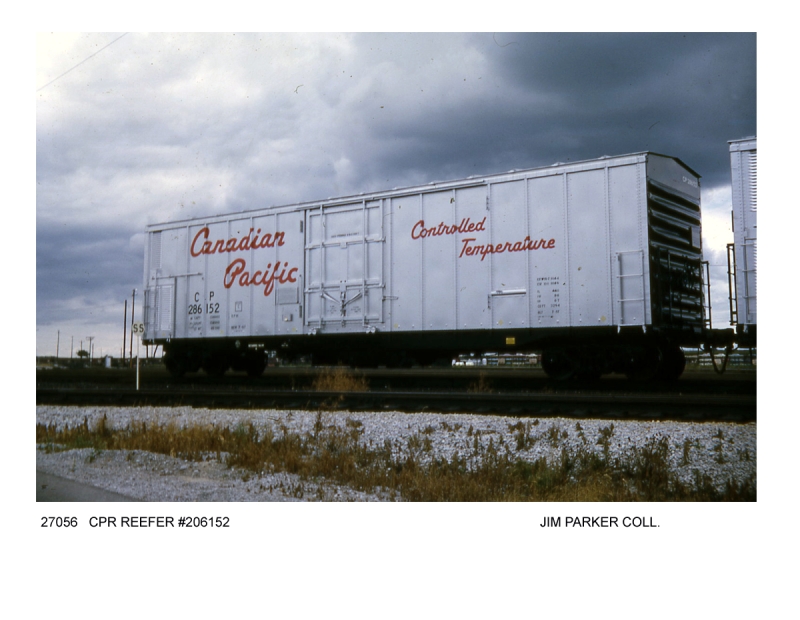

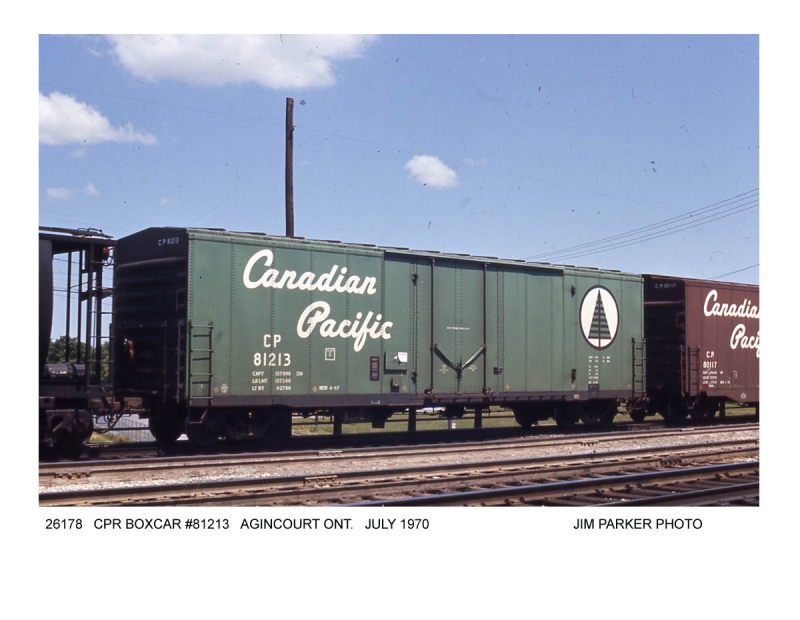

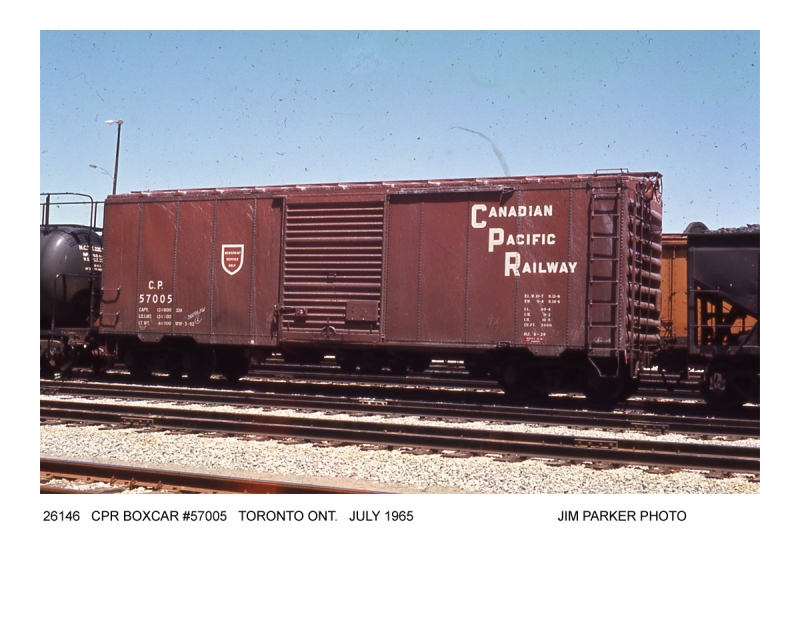

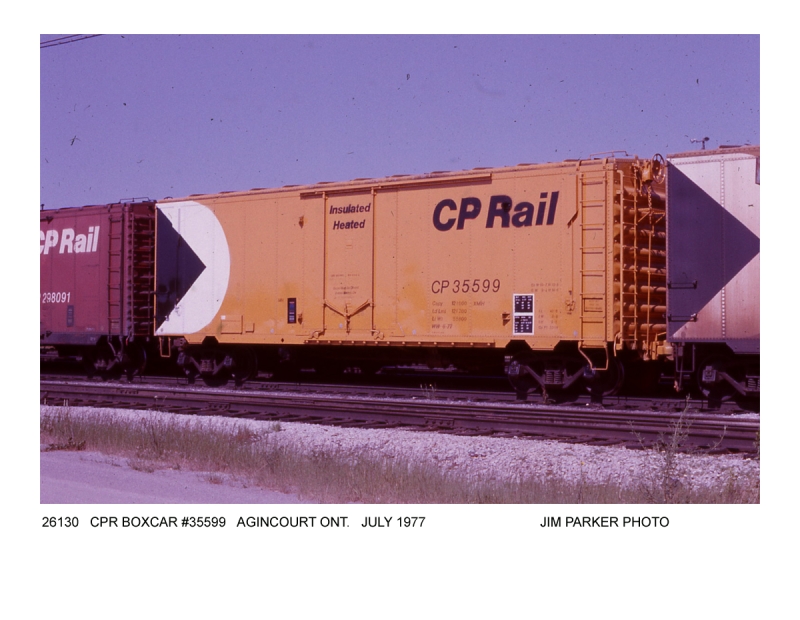

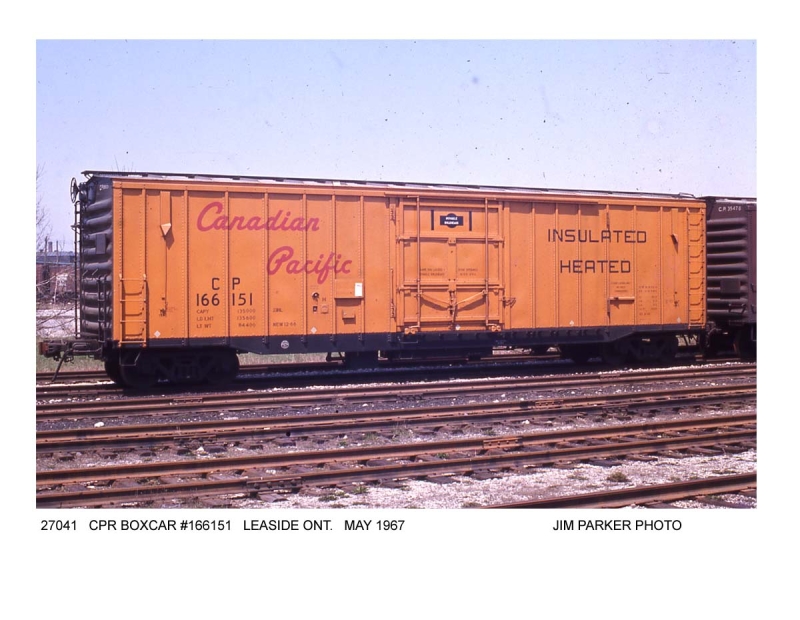

An assortment of colourful CP 40 and 50 foot box cars and mechanical reefers from the 1970’s. The yellow cars were Insulated Heated cars, and the green cars were in Newsprint Service.
